Description

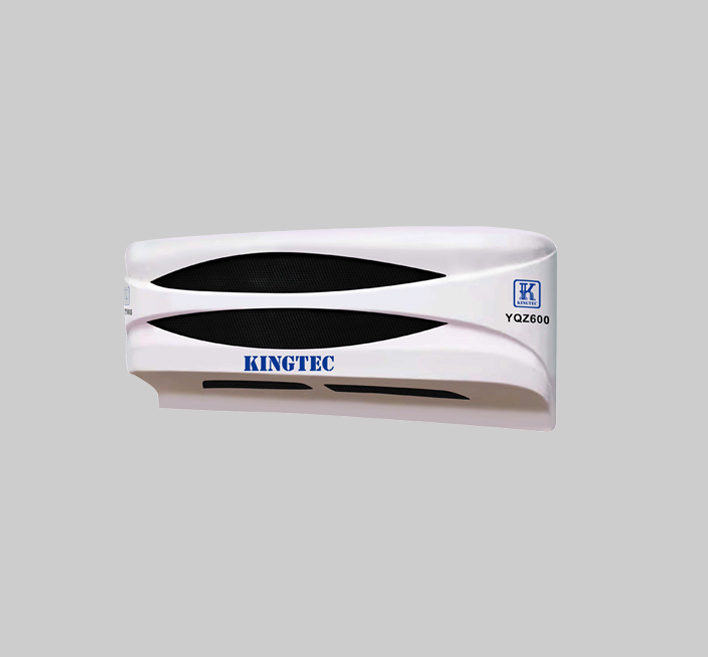

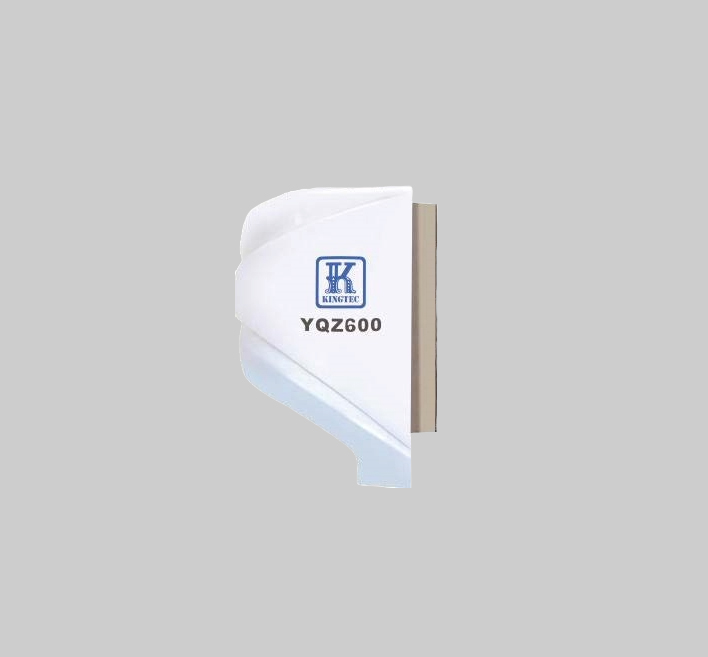

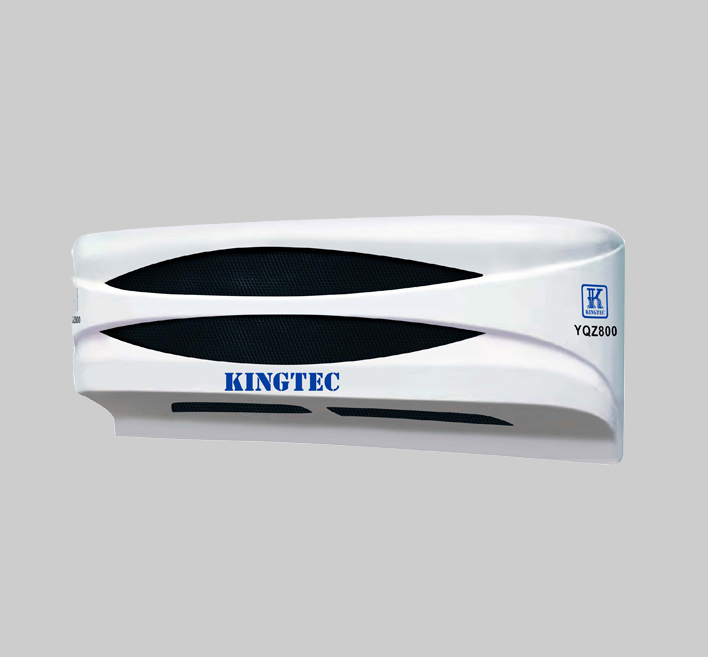

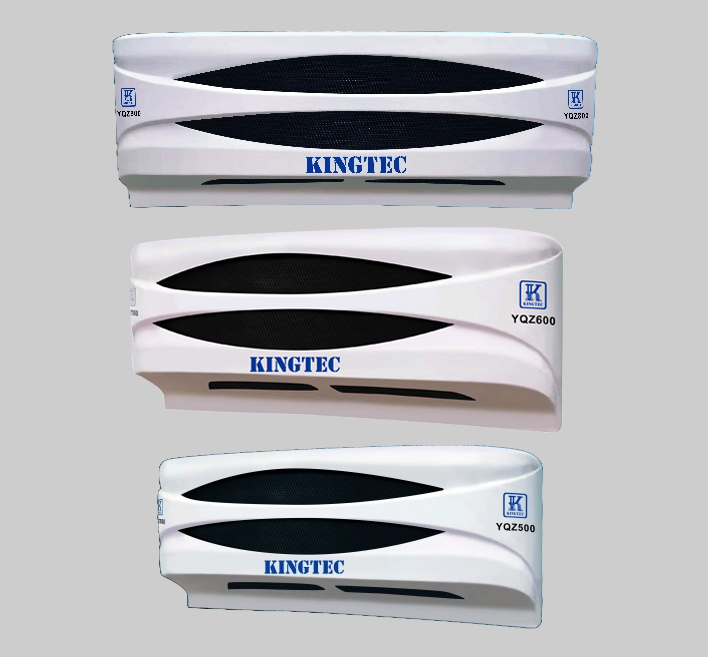

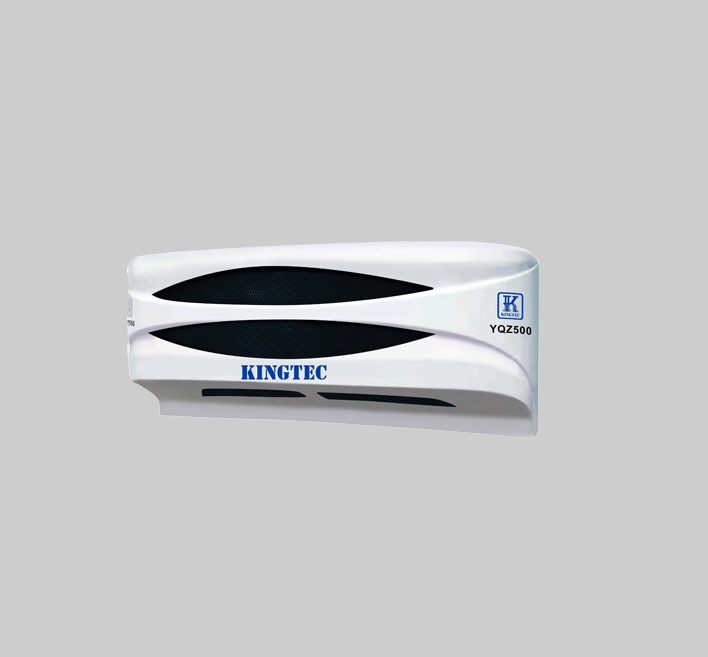

| Model | YQZ500 | YQZ600 | YQZ800 | |
|---|---|---|---|---|
| Type | All-In-One PC | All-In-One PC | All-In-One PC | |
| Suitable Box Volume (m3) | 12～25 | 15-30 | 25-40 | |

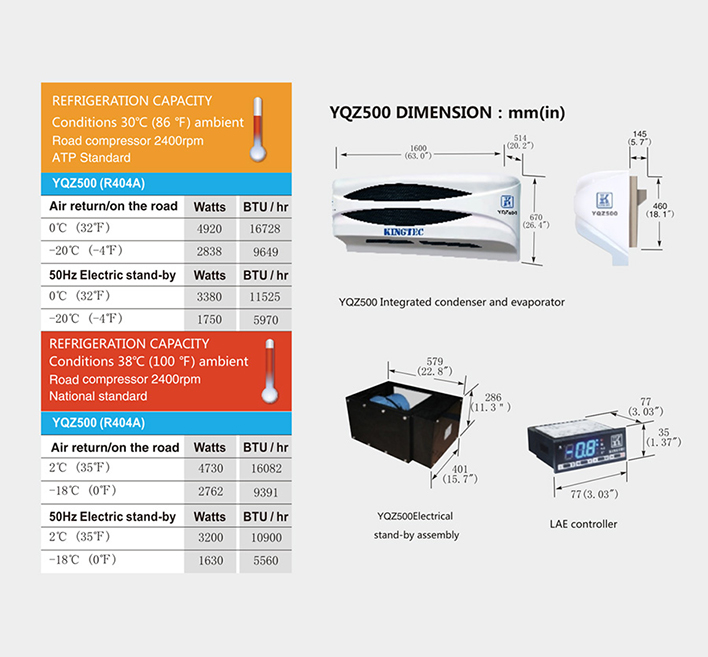

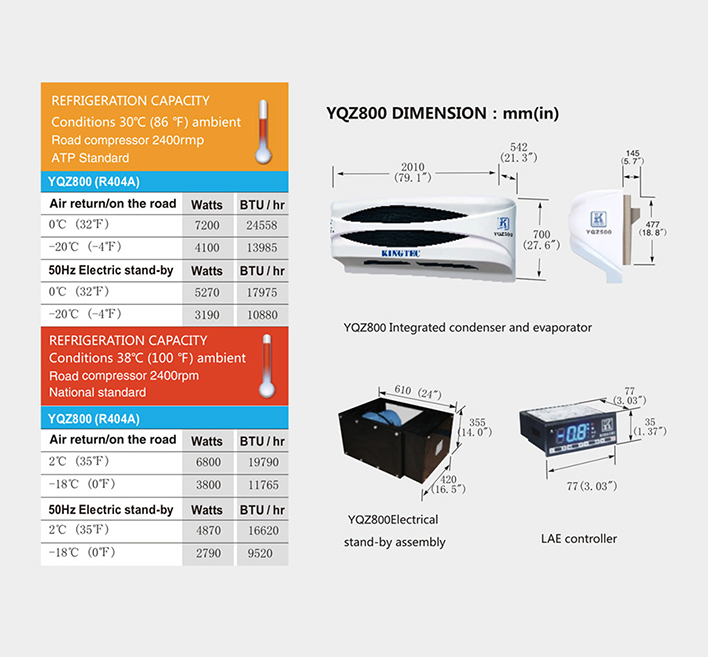

| Refrigeration Capacity | 32℉ | 16728（Btu） | 18760（Btu） | 24558（Btu） |
| 4℉ | 9649（Btu） | 11256（Btu） | 13985（Btu） | |
| Defrost | Hot Gas | Hot Gas | Hot Gas | |
| Refrigerant | R452A | R452A | R452A | |
| Refrigerant Charge | 3.3 Lbs. | 5.5 Lbs. | 6.6 Lbs. | |
| Voltage | DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | |
| Unit Current | 39A/19A | 51A/25A | 65A/32.2A | |
| Weight | 209 Lbs. | 286.6 Lbs. | 385.8 Lbs. | |
| Dimensions | 63″ x 26″ x 25.98″ | 79.1″ x 20.9″ x 27.6″ | 79.1″ x 20.9″ x 27.6″ | |
Compressor | Model | QP16 | QP21 | QP31 |
| Type | Swash Plate | Swash Plate | Swash Plate | |
| Displacement | 162cc | 215cc | 313cc | |
| Oil | RL68H | RL68H | RL68H | |
System Components
- Integrated condenser and evaporator assembly
- Road compressor (w/ magnetic clutch)
- Electric stand-by assembly (w/ options)
- In cab control and wiring harness
Refrigerant (Chlorine Zero)
- YQZ500 (R404A): HFC R404A 1.5kg
- YQZ800 (R404A): HFC R404A 3.0kg

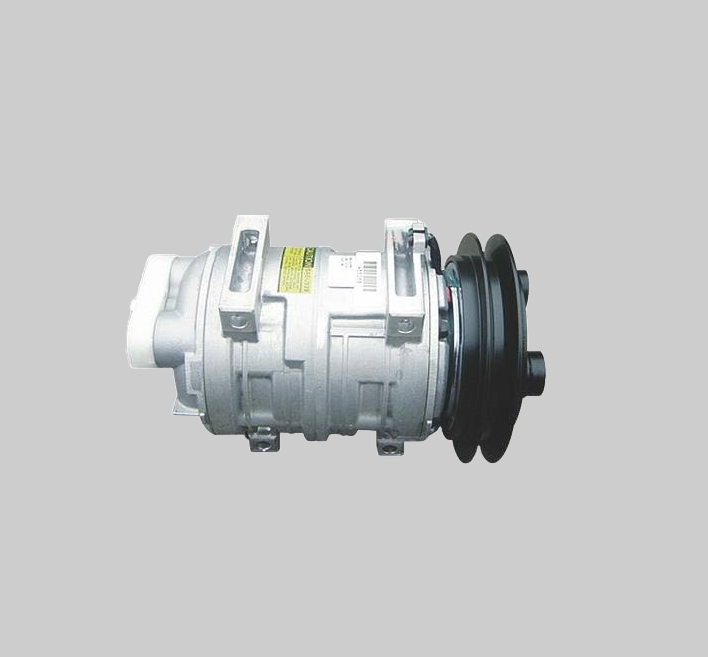

Road compressor
- YQZ500 compressor : QP16 (163cc);
- YQZ800 compressor : QP31 (313cc);
- Max recommend RPM: 3000rpm
Airflow Volume
- YQZ500 Evaporator: 1650m3/h (970cu ft/min)
- YQZ800 Evaporator: 4012m3/h (2360cu ft / min)
Defrost
- Automatic hot gas defrost
Weights
- YQZ500 Integrated condenser and evaporator: 98kg
- YQZ500(E) Electrical stand-by assembly: 60kg
- YQZ800 Integrated condenser and evaporator: 175kg
- YQZ800(E) Electrical stand-by assembly: 80kg
Warranty Summary
Specific terms of the Kingtec express warranty are available on request. Further, Kingtec excludes liability in contract and tort (including strict liability and negligence) for any special, indirect or consequential damages by reason of the installation or use of any covered product or its mechanical failure.
