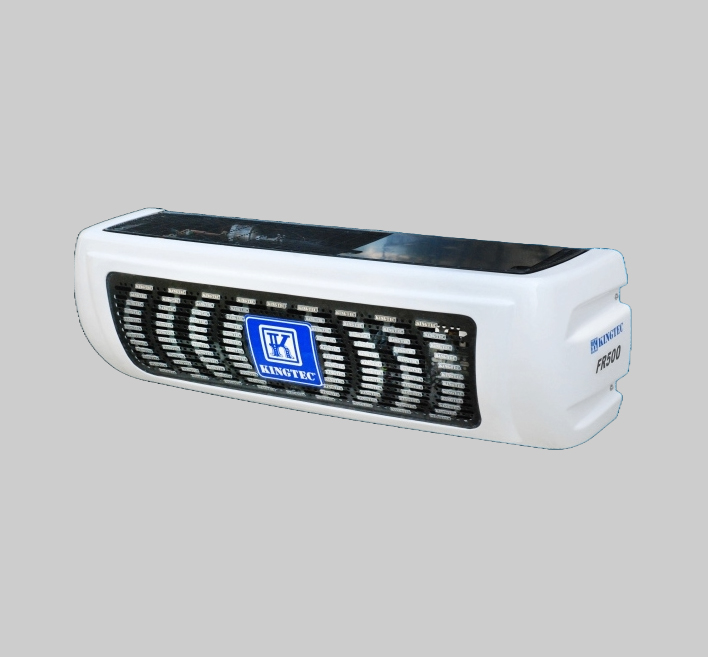

FR500E / FR600E
FR500E / FR600E - Image 2
FR500E / FR600E - Image 3

FR500E / FR600E

Kingtec’s FR-500 series units are designed for frozen and fresh applications on the 6~19m3 mini refrigeration trucks. The road compressor is powered by the vehicle’s engine. The unit also has a fully enclosed second compressor powered by an electric motor. The stand-by unit is installed on the skirt of the truck. These systems are lightweight, easy to install, and safe to use.

SKU: FR500E / FR600E Category:
Product Inquiry

Description

Standard Components

  • Condenser assembly
  • Evaporator assembly
  • Swash plate road compressor (with magnetic clutch)
  • In-cab control and wiring harness
  • Optional heating function: Hot gas heating system or engine water heating system
ModelFR500EFR600E
TypeSplit Direct DriveSplit Direct Drive
Suitable Box Volume (m3)6～1915～30

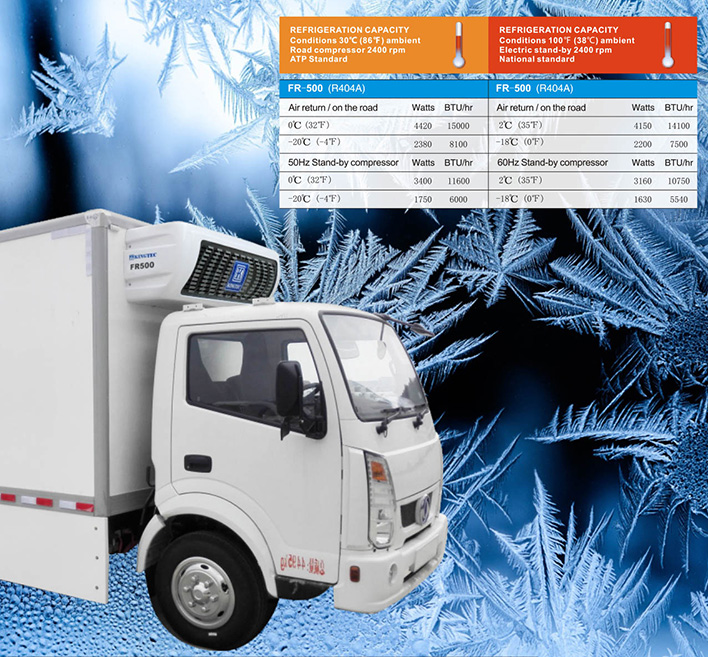

Refrigeration
Capacity		32℉15000（Btu）18414（Btu）
4℉8100（Btu）11253（Btu）
DefrostHot GasHot Gas
RefrigerantR452AR452A
Refrigerant Charge4.4 Lbs.5.7 Lbs.
VoltageDC12V/DC24VDC12V/DC24V
Unit Current39A/19A58A/29A
Stand-By VoltageAC220V/AC380VAC220V/AC380V
Unit Current16A/9.3A18A/11A
WeightCond. Assembly187.4 Lbs.198.4 Lbs.
Evap. Assembly55 Lbs.77.2 Lbs.

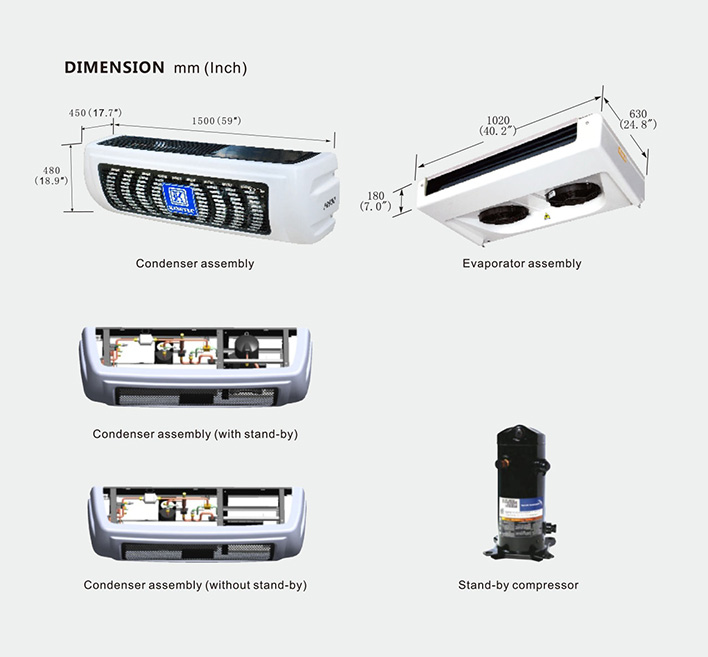

DimensionsCond. Assembly64.2″ x 25.98″ x 8.38″64.2″ x 25.98″ x 8.38″
Evap. Assembly40.16″x 25.98″ x 8.38″52″ x 24.4″ x 9.2″


Compressor		ModelQP16QP21
TypeSwash PlateSwash Plate
Displacement162cc215cc
OilRL68HRL68H


Stand-By Compressor		ModelWHP09800DCV-C9EUDTH488LV-C9EU
TypeRotor TypeRotor Type
Displacement48.8cc48.8cc
OilRL68HRL68H

Additional information

Type

Roof Mount
Electrical Rating

115VAC / 60Hz/ 1P
Cooling Capacity (BTU / HR)

15,000
Heater Amps / Watts @115VAC

17.4 / 2000
Evaporator Air Flow (CFM)

417
Compressor-Rated Load Amps

12.4
Compressor-locked Rotor Amps

57
Fan Motor-Rated Load Amps

2.0
