EKL320-E48
EKL320-E48 - Image 2
EKL320-E48 - Image 3
EKL320-E48 - Image 4

EKL320-E48

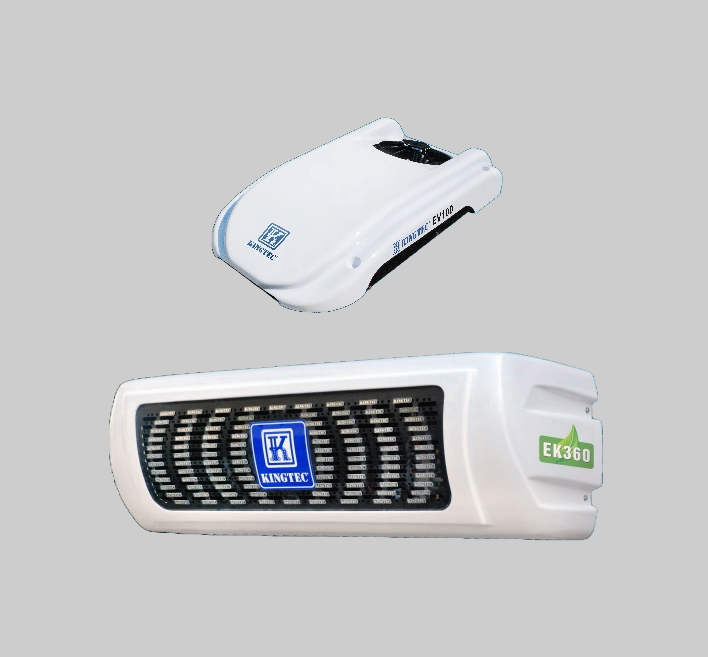

EVL/EKL series are all-electric refrigerating units that meet transport refrigeration and freezing requirements of 2m2~15m2

All-electric transport refrigeration units are perfect for temperature control of Fresh products in urban delivery. It is an entirely 12V electric refrigeration unit that does not need an engine compressor to operate. Therefore saving on fuel and future maintenance or engine repair costs.

SKU: EKL320-E48 Category:
Product Inquiry

Description

Technical Specification Sheet
ModelEKL100EKL130EVL170EKL230EVL270EKL360
Applicable box ( ft³ )70 ~ 21070 ~ 21070 ~ 210210 ~ 350210 ~ 350350 ~ 525
Btu/hr under
ambient 100°F		Set temperature 35°F4700 BTU/hr4920 BTU/hr5180BTU/hr10000BTU/hr10020 BTU/hr13300BTU/hr
Indoor temperature 0°F2520 BTU/hr2780 BTU/hr3080 BTU/hr5400 BTU/hr5500 BTU/hr7500 BTU/hr
Air current indoor620ft³/min708ft³/min708t³/min810ft³/min810ft³/min944ft³/min
VoltageDC12VDC48V
Compressor VoltageDC48VDC220VAC220V
Maximum power consumption1 KW1.5 KW1.6 KW3.0 KW3.0 KW4.0 KW
RefrigerantR404A
Indoor temperature range0°F-60°F
Ambient temperature range-22°F ~ -122°F
MountingMonolithicCondenser nose mountedCondenser roof mountedCondenser nose mountedCondenser roof mountedCondenser roof mounted
Unit weight(lbs)Condenser128 lbs88.2 lbs88.2 lbs110.2 lbs121.3 lbs165.3 lbs
Evaporator48.5 lbs (EVK200C/EVK180)48.5 lbs (EVK200C/EVK180)57 lbs (EVK300C)57 lbs (EVK300C)68 lbs (EVK350)

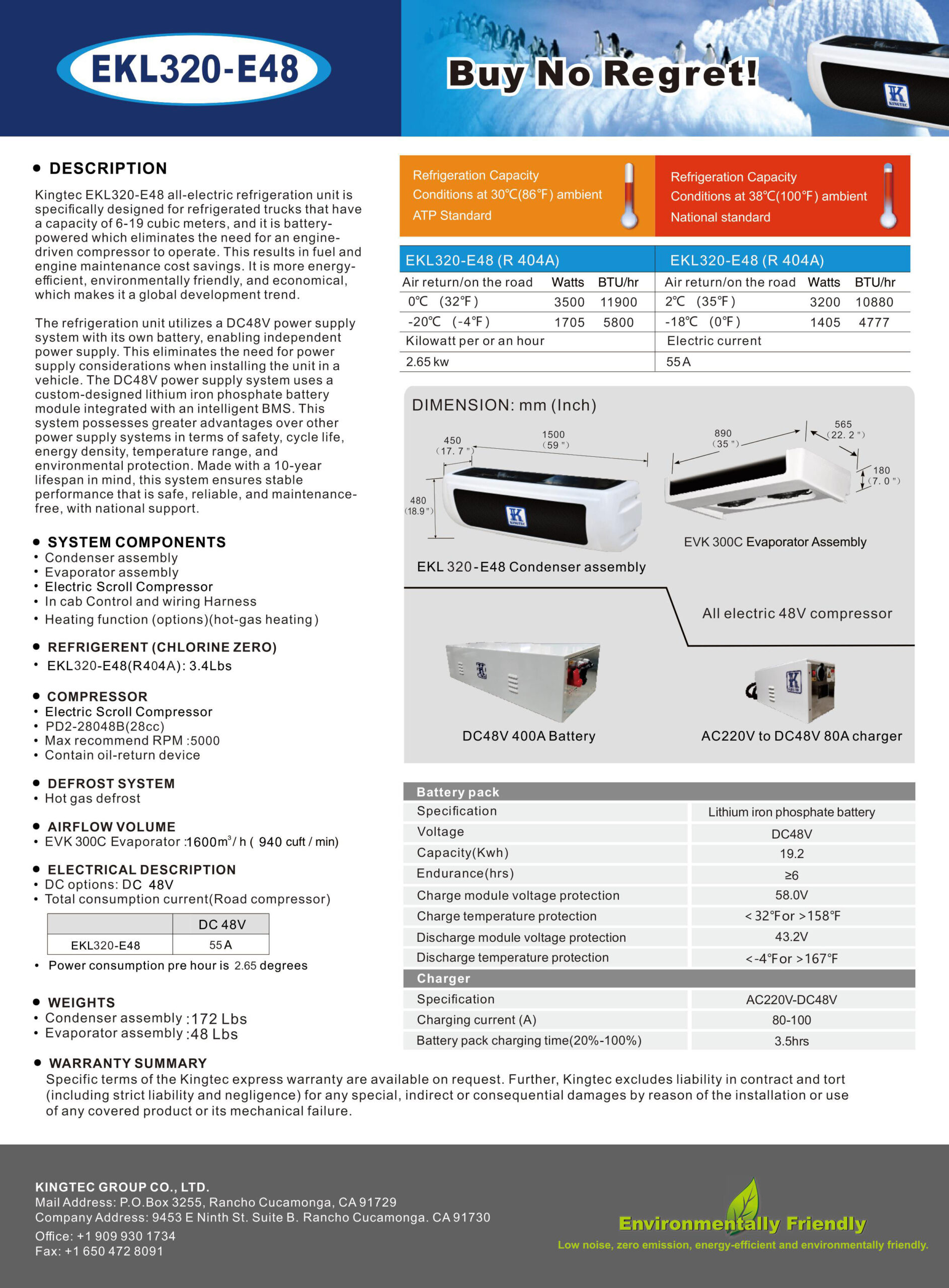

EKL320-E48 2023 Brochure Download
