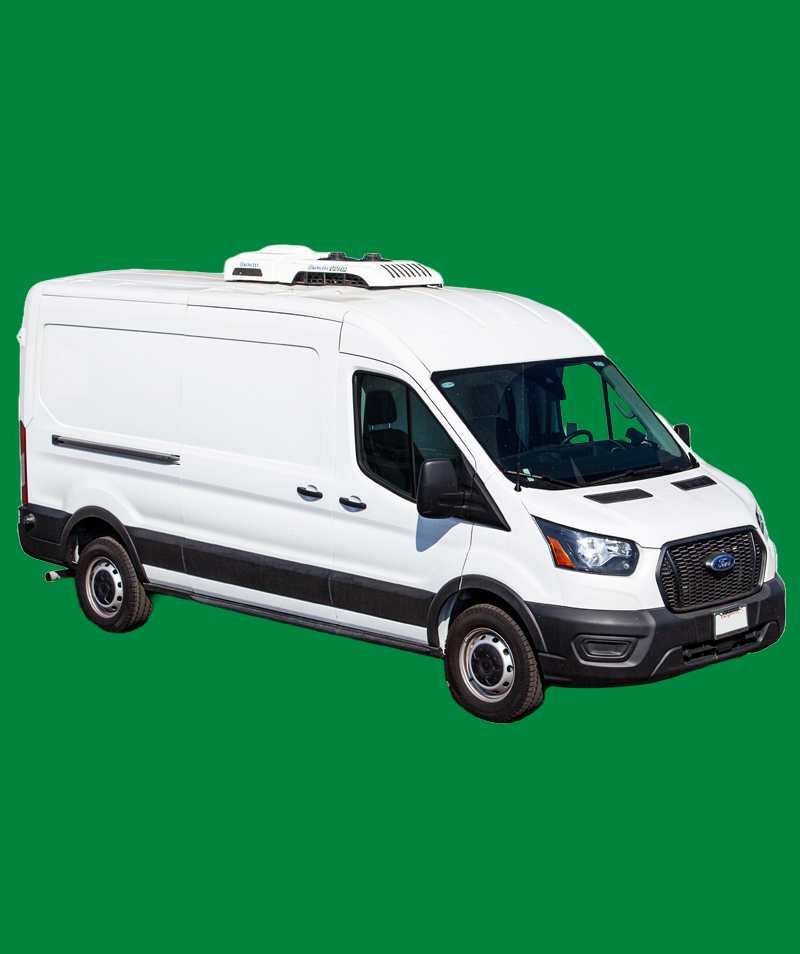

ET270-E12

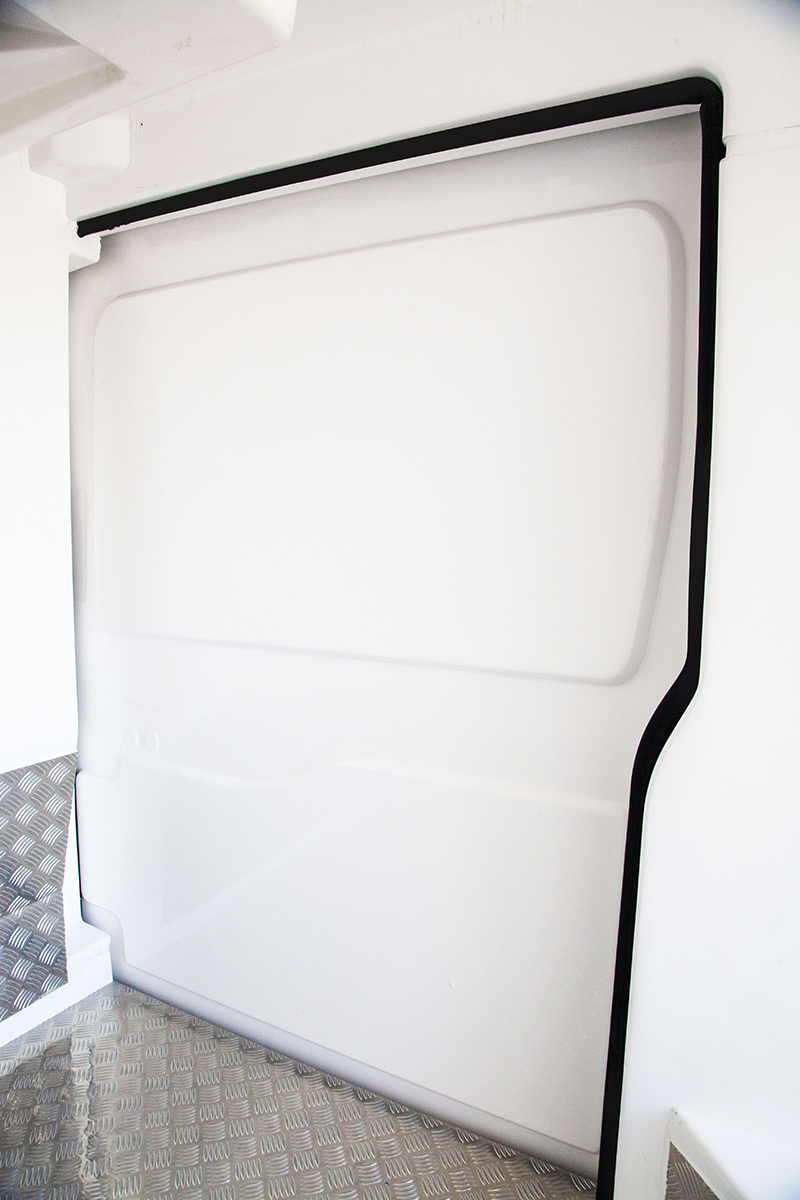

ET270-E12 - Image 2

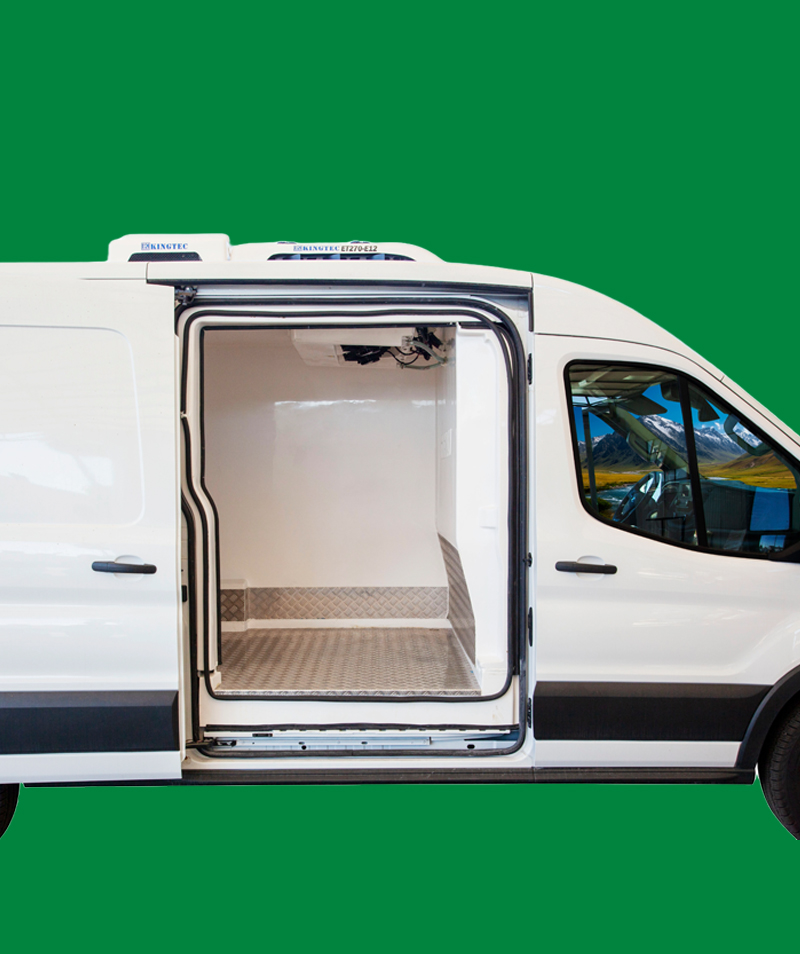

ET270-E12 - Image 3

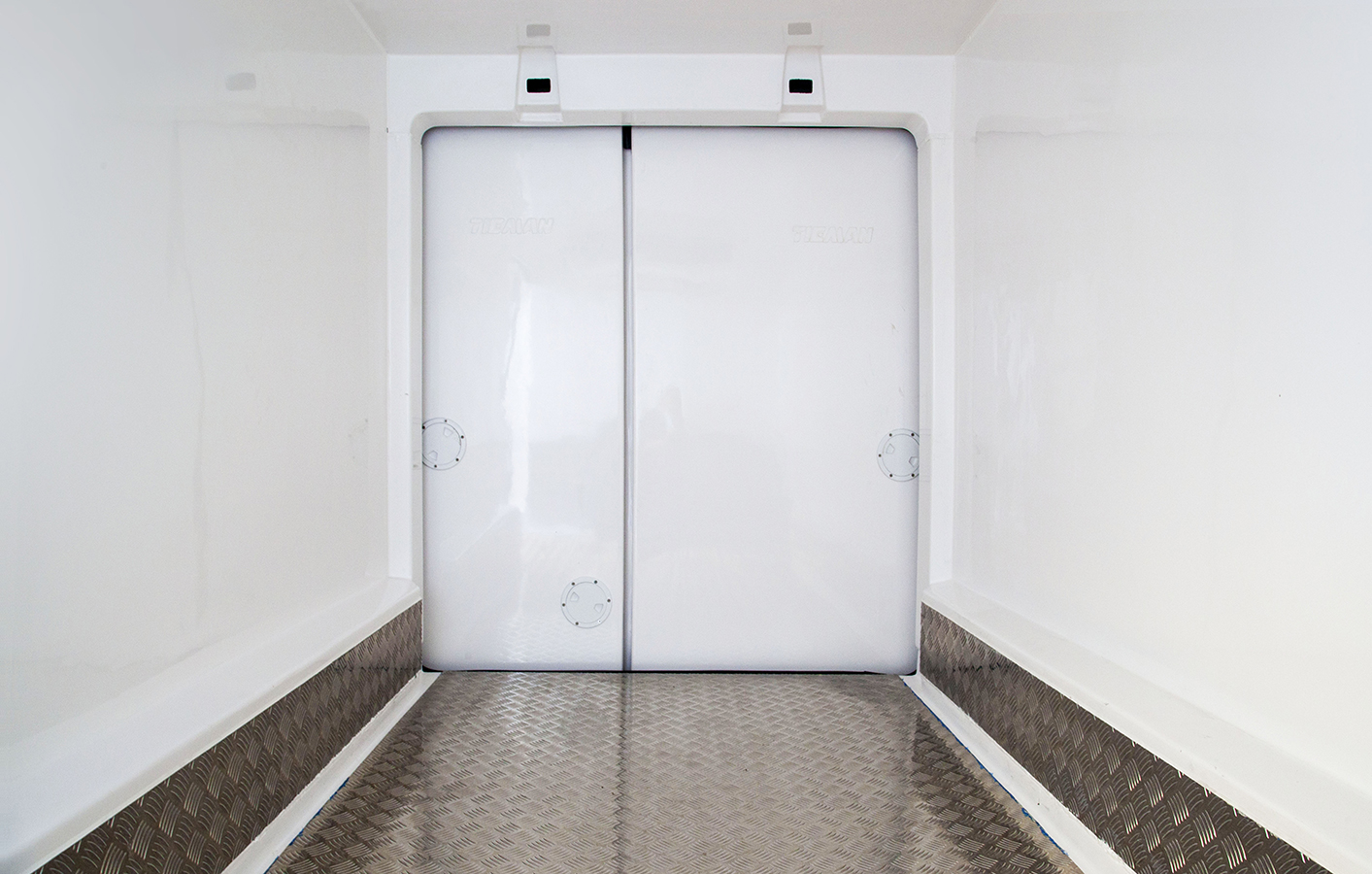

ET270-E12 - Image 4

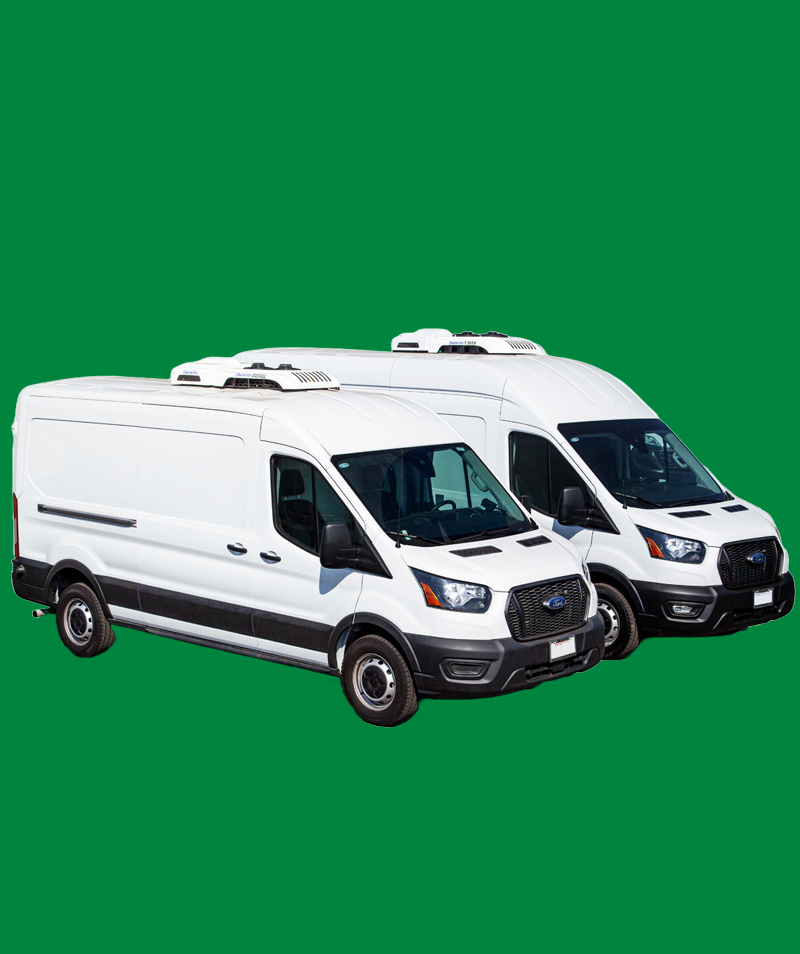

ET270-E12 - Image 5

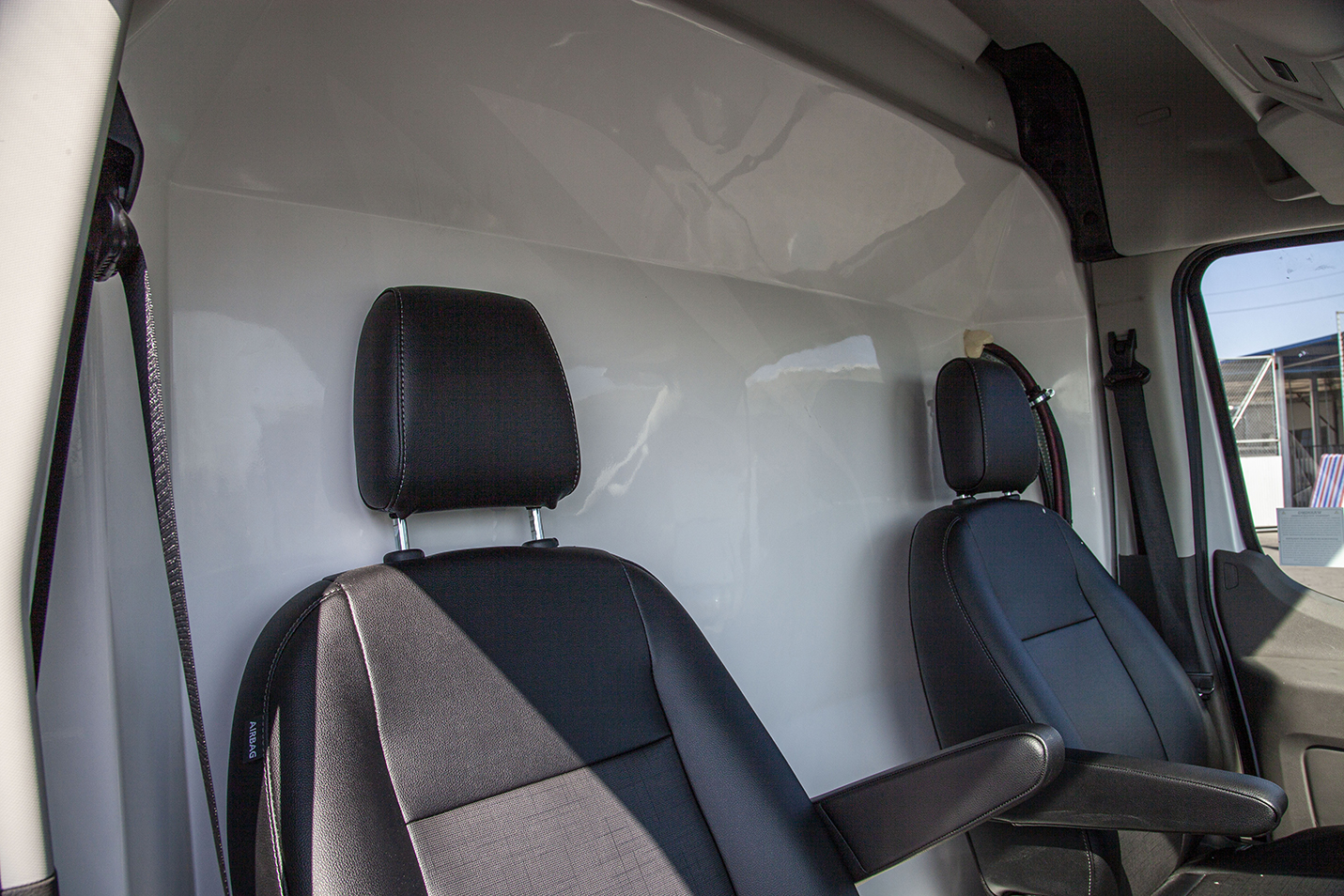

ET270-E12 - Image 6

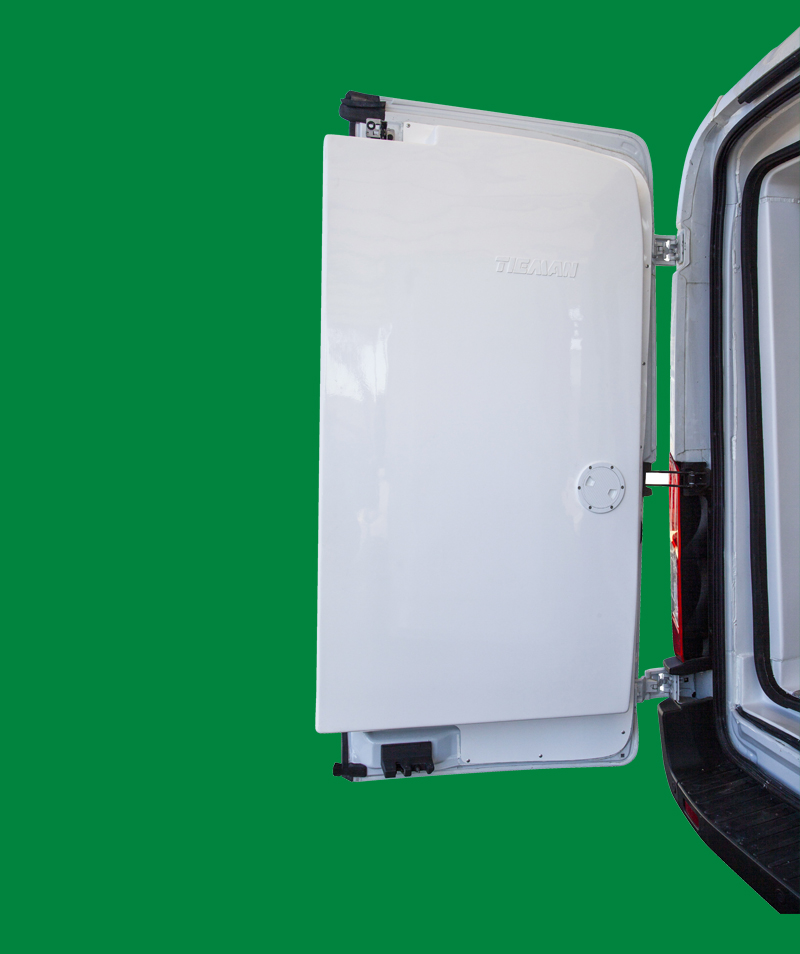

ET270-E12 - Image 7

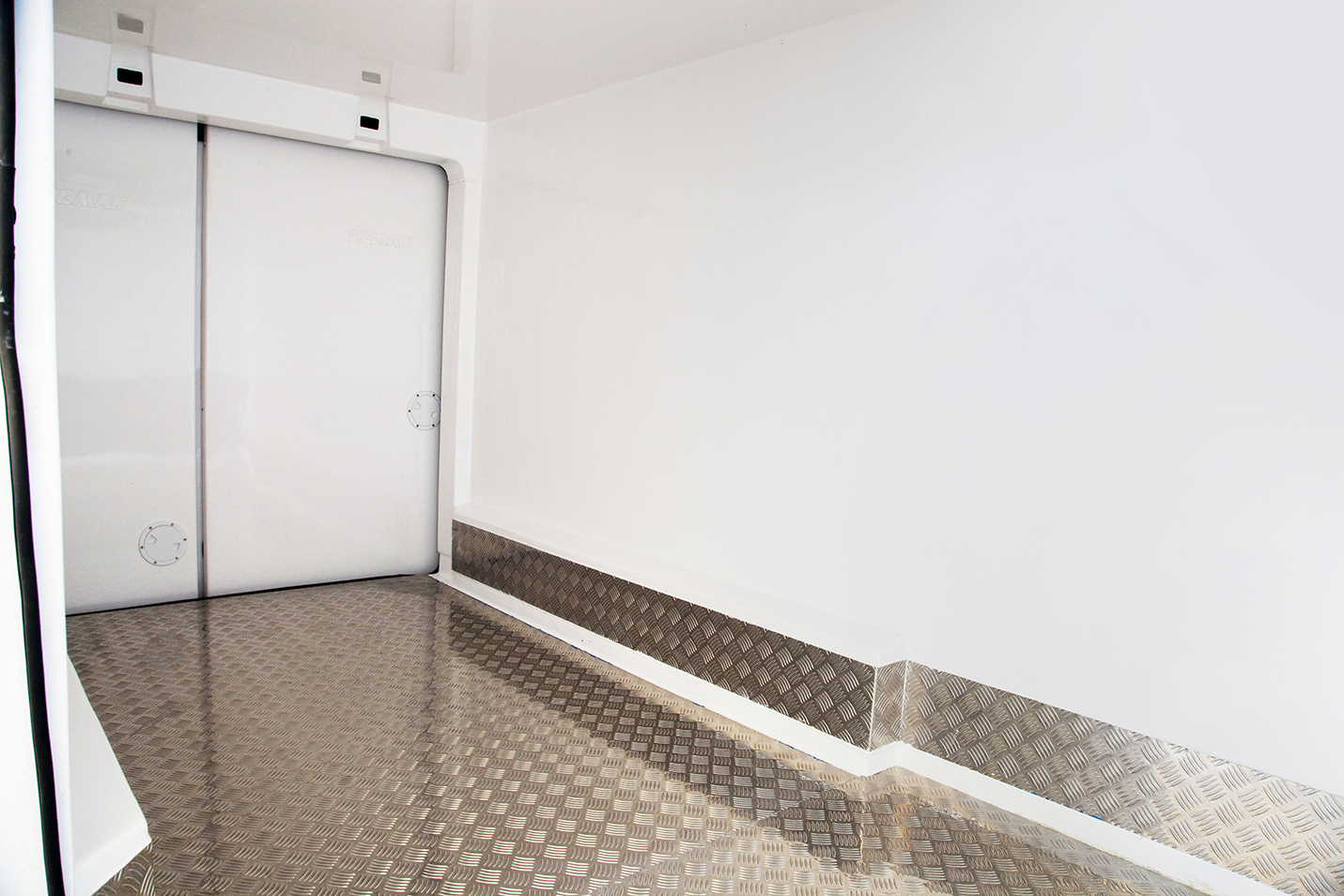

ET270-E12 - Image 8
ET270-E12 - Image 9
ET270-E12 - Image 10

ET270-E12

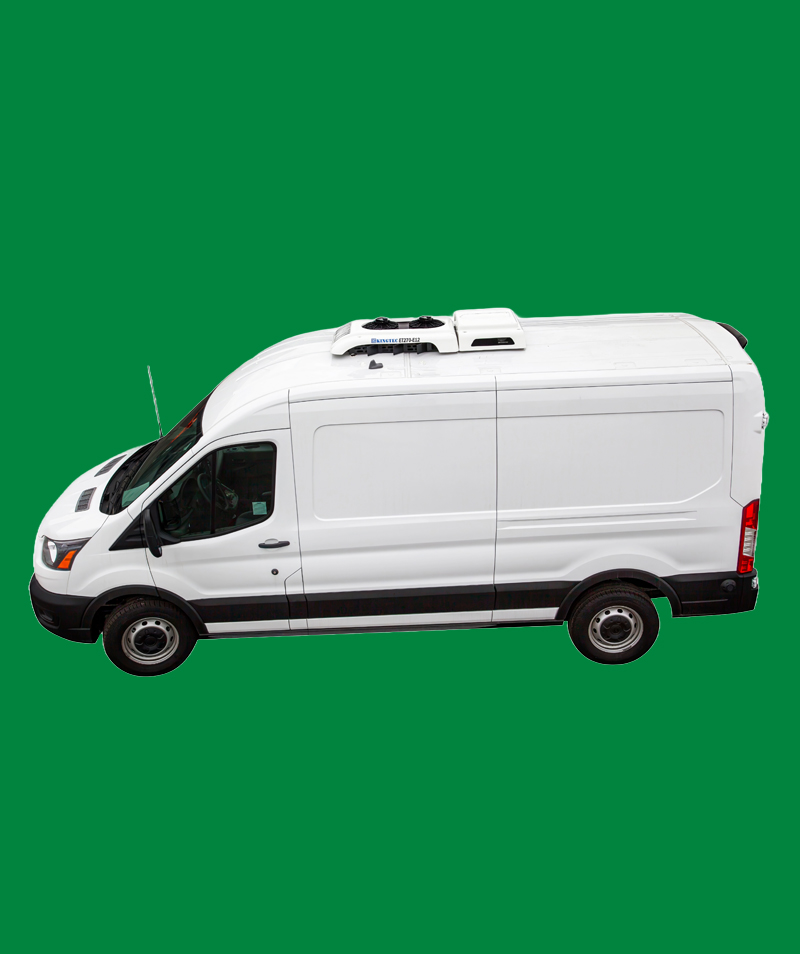

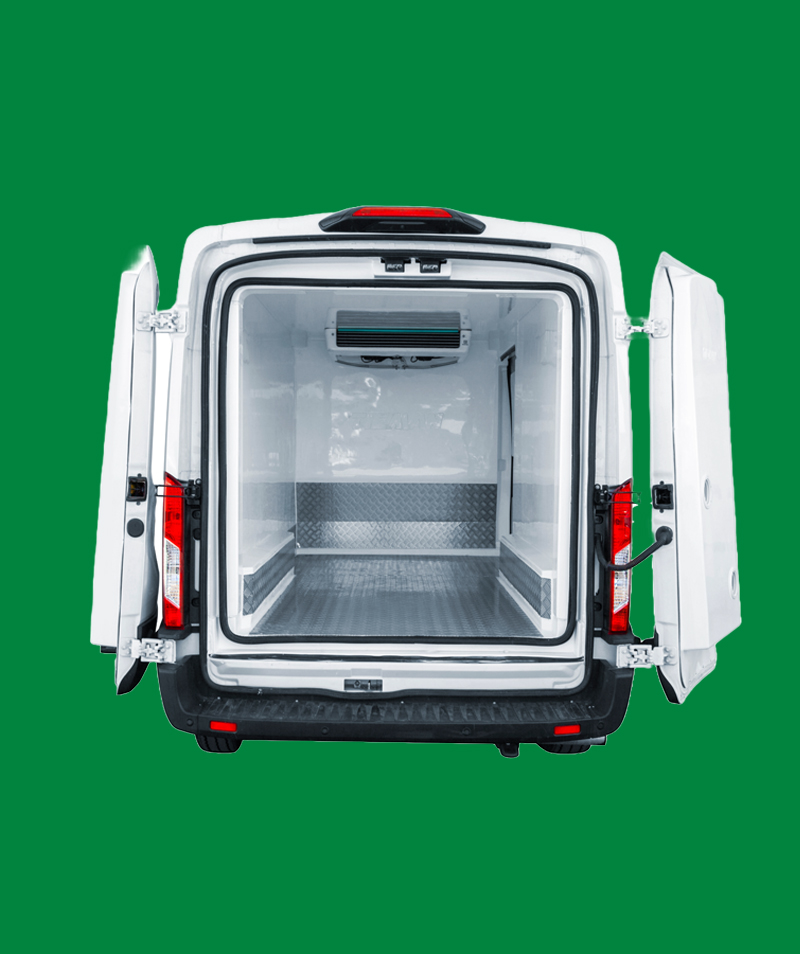

ET270-E12 split direct drive unit series are specially designed and manufactured for small size refrigeration trucks suitable for 6 through 12 cubic meters truck box volumes and inside temperature 13°F to 77°F application, has following characteristics.

  • Condenser and Evaporator combined into one united body with new unique appearance design, reasonable parts arrangement easy to install and operate.
  • Import compressors specially for transport refrigeration, u sing environment friendly refrigerants R134a.
  • Heat exchanger coil using inner screw grooved copper tube and waved Aluminum fins has long life and high performance.
  • Control and safety parts are all internationally famous brand, reliable and accurate.
  • Automatic microprocessor controller has functions of temperature display, temperature setting, automatic temperature control, and hot gas defrost etc.
  • Every unit is checked and test run before rolling out from factory.

Need Insulated Van with our Refrigeration Unit? Click Here

SKU: ET270-E12 Category:
Product Inquiry

Description

ModelET270-E12
Application Temperature (°F)13°F - 77°F
TypeSplit Direct Drive
Suitable Box Volume (m³)6-12
Refrigeration
Capacity (w)
/86 °F
32°F
10200 (Btu)


Compressor		ModelPD2-18012A
TypeElectric Scroll Compressor
Displacement18cc
OilRL68H

Condenser and Evaporator		TypeFront mount Condenser and Evaporator combined into one united body
FanAxial Flow Fan
Voltage12V
ThrottleTXV with outside balance
RefrigerantR134a
Refrigerant Charge (lb)2.4
DefrostHot Gas

Dimensions
Evap. and Cond. Assembly		1537 x 680 x 200(mm)
985 x 565 x 180(mm)

Unit Current		DC12V130A
AC220V6.8A

Weight (lbs.)
Evap. and Cond. Assembly		41 lbs.
166 lbs.

Note:
1. Box volumes listed above is for reference only, and actual volumes should be decided by box insulation and sealing, application inside and outside box temperatures, and the kind of transport perishable products etc.
2. Kingtec reserves the right to change the above specification without pre-notice.
3. Contact Kingtec for application and special requirements.

DOWNLAOD: Operation Manual
