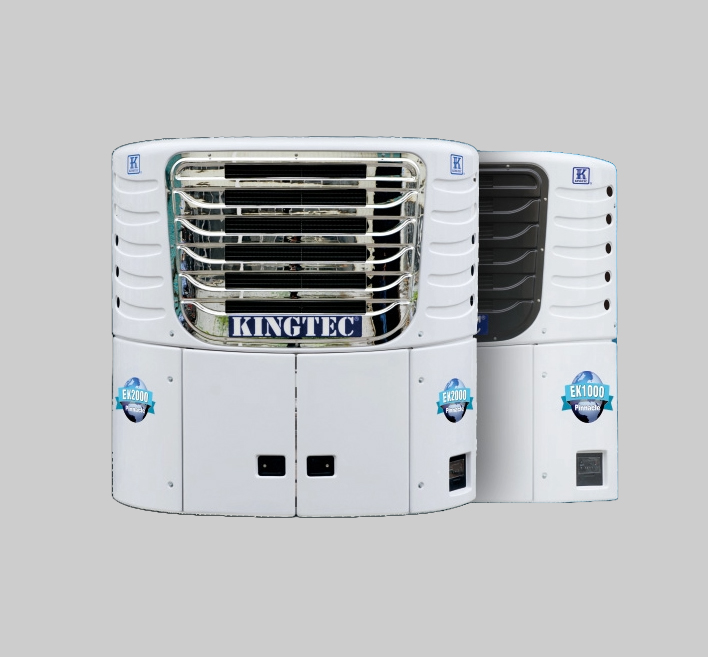

EK1000 / EK2000
EK1000 / EK2000 - Image 2

EK1000 / EK2000

  • New energy efficient trailer series; all-electric refrigeration unit
  • Compatible with trailers that have auxiliary battery modules
  • Uses BMS (battery management system) for full temperature control
  • Contains an advanced microcomputer control system
  • Electric compressor and fan control
  • Continuous Run Mode
  • Automatic functions such as defrosting, fault detection/diagnosis, and voltage detection
SKU: EK1000 / EK2000 Category:
Product Inquiry

Description

ModelEK1000EK2000
FormationIntegratedIntegrated
Applicable box(28 ft)(53 ft)
Electric power
(Btu/hr)		35°F2200051000
0°F1400029000
CompressorModelSAVCO7OD22ULKASAVCO7OD22ULKA
FormationElectric scroll compressorElectric scroll compressor (dual)
OilFVC68DFVC68DD
Voltage range150-400V DC150-400V DC
CondenserFormationNose mountedNose mounted
FanAxial flow fanAxial flow fan
VoltageDC48VDC48V
EvaporatorFormationInterior roof mountedInterior roof mounted
FanAxial flow fanAxial flow fan
VoltageDC48VDC48V
Refrigerant controlInternal and external balance expansion valveInternal and external balance expansion valve
RefrigerantR404AR404A
Refrigerant charge (lb)10lbs18.9lbs
DefrostHot gas defrostingHot gas defrosting
Suction pressure regulating valve setting16kgf/sq.in16kgf/sq.in
Overall dimensionUnit assembly2167*2060*6002167*2060*600
Compressor power consumption5.8Kw11.5Kw
Fan overall consumed power1.0Kw1.6Kw
Battery capacity60Kwh110Kwh
WeightUnit assembly926lbs1212lbs
