Description
- Compact design
- Simple maintenance
- Safety protection
- Optional programmable timer
- Self diagnosis fault code system
- Low emissions and low operating cost
- 1 Year warranty as standard

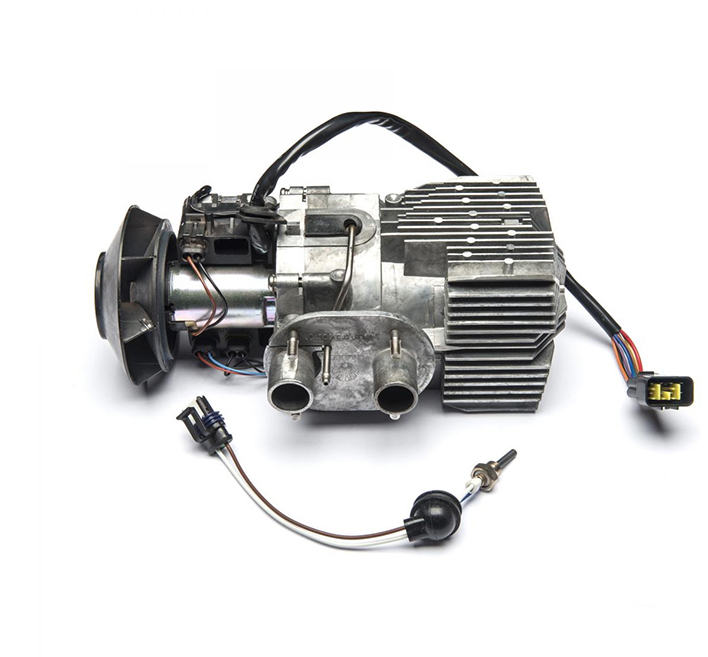

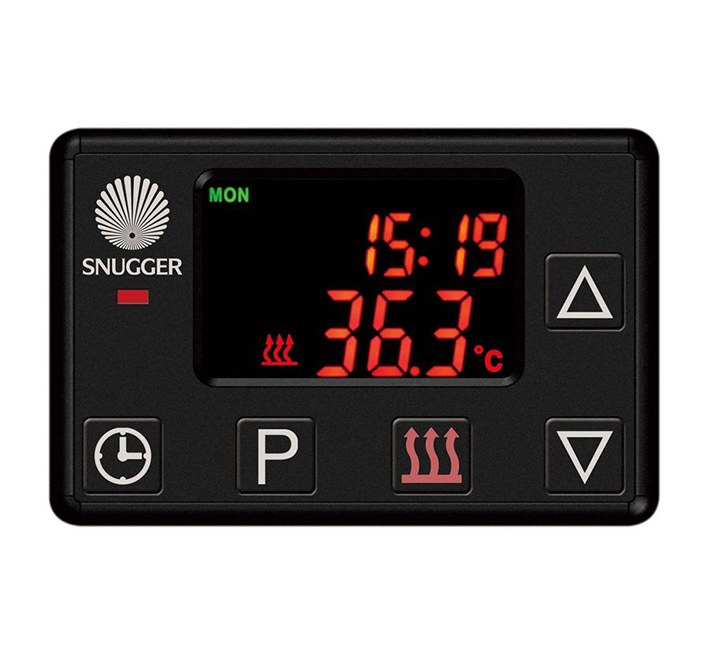

Snugger heaters operate by burning diesel fuel which pushes hot air through the heat exchanger to maintain a comfortable temperature inside the vehicle. Heating can be connected to the existing fuel system, or retrofitted with separate fuel tank. They operate automatically with a timer setting and remote control. The units can be installed in the cab of the vehicle with a sleeper cab or in the cargo area. They are ideal for buses, rail vehicles, trucks, special vehicles, yachts, boats, campers, and caravans.
| Model | SNUGGER SF2300 | |||
|---|---|---|---|---|
| Heating value (±10%) btu/ hr (Kw) | Super | High | Medium | Lower |
| 7850 (2.3) | 6485 (1.9) | 4437 (1.3) | 3072 (0.9) | |
| Fuel consumption US gal / hr (L/ h) | 0.07 (0.28) | 0.06 (0.24) | 0.04 (0.15) | 0.02 (0.1) |
| Fuel | Diesel | |||
| Air flow (±10%) Cfm | 49 | 41 | 20 | 28 |
| Electric power consumption (watt)/ amp running (12 and 24 Volt) | 34 (2.8/1.4) | 23 (1.9/0.95) | 13 (1.1/0.54) | 9 (0.75/0.375) |
| Start-up (watt) / amp (12 and 24 Volt) | 100 (8.3/ 4.2) | |||
| Rated voltage (V) | 12 | 24 | ||
| Low-voltage protection will shutdown the units when it reach to approx. 10.2 volt and 21 volt. | Approx. 10.5 volt and 21 volt Under-votage protection: 20 secs |
|||
| Over-voltage protection will shutdown the units when it approx. 16 volt and 32 volt. | Approx. 16 volt and 32 volt Over-votage protection: 20 secs |
|||
| Overheat protection (±10%) °C /°F | 239°F / 115°C | |||
| Weight kg (lbs) | Approx. 2.7 kg / 5.9 Ibs | |||
| Please note: Listed technical data is subject to the tolerance of ±10%. |
||||
